DIY bathroom mirror frame. Cost: $0.


I am going to show you how to go

From this:





To this:


CLICK THE READ MORE >> BUTTON FOR A STEP-BY-STEP GUIDE

My wife and I redid a bathroom.  We took down the builder-grade mirror and installed a plastic-framed mirror we bought at Bed Bath and Beyond (click here to see the prices of their frames for yourself). Cost $65. On sale.  Ridiculous.  I kept the old mirror just in case we ever needed it.  You'll find out there's not many building materials I throw out. 2 years later, this is the case.

I couldn't find a good DIY mirror frame online.  Most glued the frame to the glass, which would leave an unsightly gap around the edges.  Mirror Mate makes a product that does this that really isn't too bad.  Worth checking out if you want to go that route.  You can see it here.  However, I wanted a flush, recessed mirror that I could move if I ever wanted to - so I made my own.

My main objective: spend $0.  Honestly, that's mainly because I'm broke thrifty.


Materials you could buy:

  • 1X3 in length to fit your mirror.  You could really use whatever size board you want - make it thicker (1X4,1X6, etc) if you want a thicker frame.  Usually, the thicker you make it, the more swag it has.
  • Also, it is your choice in quality of wood. My opinion - if you want to stain, get some nicer wood like birch or oak. If you are going to paint, I say get the cheapest pine whitewood and make it pretty. For less work, get the select pine, which is on the cheaper side and can stain ok, too.)
  • You will spend anywhere from a low of $0 to a max of probably $25 if you use oak boards and need some miscellaneous stuff on the list.


Tools you will need:
  • Table saw or circular saw or jigsaw or a friggin coping saw.  Something to cut some straight, easy cuts.
  • Kreg Jig (or you can use glue and some staples, I guess)
  • Router (table saw could also be used instead - OR you could buy some pre-rabbeted wood)
  • Sanding block. However, a power sander is well worth the investment (this is the one I own)
  • Wood filler
  • Primer (if painting)
  • Paint / Stain
  • Paint brush



What I used (objective was $0.):

  1. Existing builder grade mirror ( Mine measured  24" x 41 7/8" . But 42" is just as close.... )
  2. Old scrap piece of ugly plywood in my garage.
  3. Kreg Jig with some 1 1/4" screws.
  4. 5" random orbital sander with 120 grit sandpaper discs. Because that's what I had.
  5. Elmer's wood filler in "natural" tint.
  6. Primer I had
  7. Paint I had
Make your measurements.  I chose to make my frame 2 1/2" wide,   I needed two boards cut to 46" and two boards cut to 28".  Mark your measurements and make the cuts.  If you're on a table saw, set it, rip it, and forget it.



Next, you want to rout the edges so the mirror will recess into the frame.  I used my Bosch router for this with a 1/8" rabbeting bit (this is the router kit I have. Highly recommended!)  Don't be scared by the terminology - it's pretty simple.  You could also use a table saw with a dado blade OR you could set the depth of your your table saw blade to the depth of your mirror, score a line, and chisel out the strip.  Either way, you are making a little lip on the edge of the wood.  Do your two styles (long pieces) from end to end (only do the longer pieces - look at the next step for the smaller ones). It should look like this when you are done


Next step is to do the same thing to the rails (smaller ones), but we don't want to run from end to end.  We want to leave a spot for the screws to catch well in the next step, so here's a little cheat.  Put your two long styles on the mirror, like this:


then lay a rail flush with one of the styles.  From the bottom, mark where the mirror ends, like this:

Now route your edge up to that line.  This way, you can still pocket-hole screw the boards together.  If we routed clean across, the boards would be very weak in that spot, and the screw would split it up.  regardless, this is a strong way to join the boards.  now you should have a set that looks like this (notice where the rout on the rails stop):

Now I used my Kreg Jig (info on that here) to drill two pocket holes into each end of my styles, leaving them like this (if you don't have a Kreg Jig, get one. if you can't, then you could put glue on the edges and clamp it tight. secure with a few staples over the spot where the two boards meet):


Now join the rails and the styles with 1 1/4" Kreg screws.  Hate to beat a dead horse here, but the Kreg clamp makes joining everything so easy.  Anyways, get your screw on and it should look like this when you are done:


We're gettin there - you should be getting excited by now!  Ok, settle down.  We've still got a lot to do.

Now, we're going to sand it all. I used my Skil 5" random orbit sander.  Now, I'm a Bosch man, but that little Skil sander is the swaggiest sander.  For $40, you can't touch that...(update: you can touch that.  it ended up throwing discs all over the place after about 2 weeks of use.  decent sander, but i returned it and got the Bosch random orbital.  I'll have a review soon.  No comparison.)   anyways, sand everything down and apply wood filler where necessary. You may not need any if you used some nice wood.  Me, I basically MADE a new board with the amount of filler I used in this canyon-like plywood. I use Elmer's natural tint wood filler (this is the exact one) - it always works well for me. Sand it, fill it, and sand it again. That got it like this:






Now we get to prime the whole thing.  I used Kilz2 water based primer (check blue price here / check orange price here). Looks like this when done:


NOTE: you have to paint the backside of the frame. Otherwise, when you put in the mirror, it will reflect the unfinished wood.  For illustrative purposes, look at the top of the frame in this photo (and it looks much worse in person):


So now you just have to finish it with the paint color of your choice.

NOTE: this next tip is NOT slop work.  Don't confuse it as such. This little tip is actually faster and more economical than any method I have ever seen for painting around glass or mirrors. Your line will be better than if you had taped it, it's faster, and it costs $0.

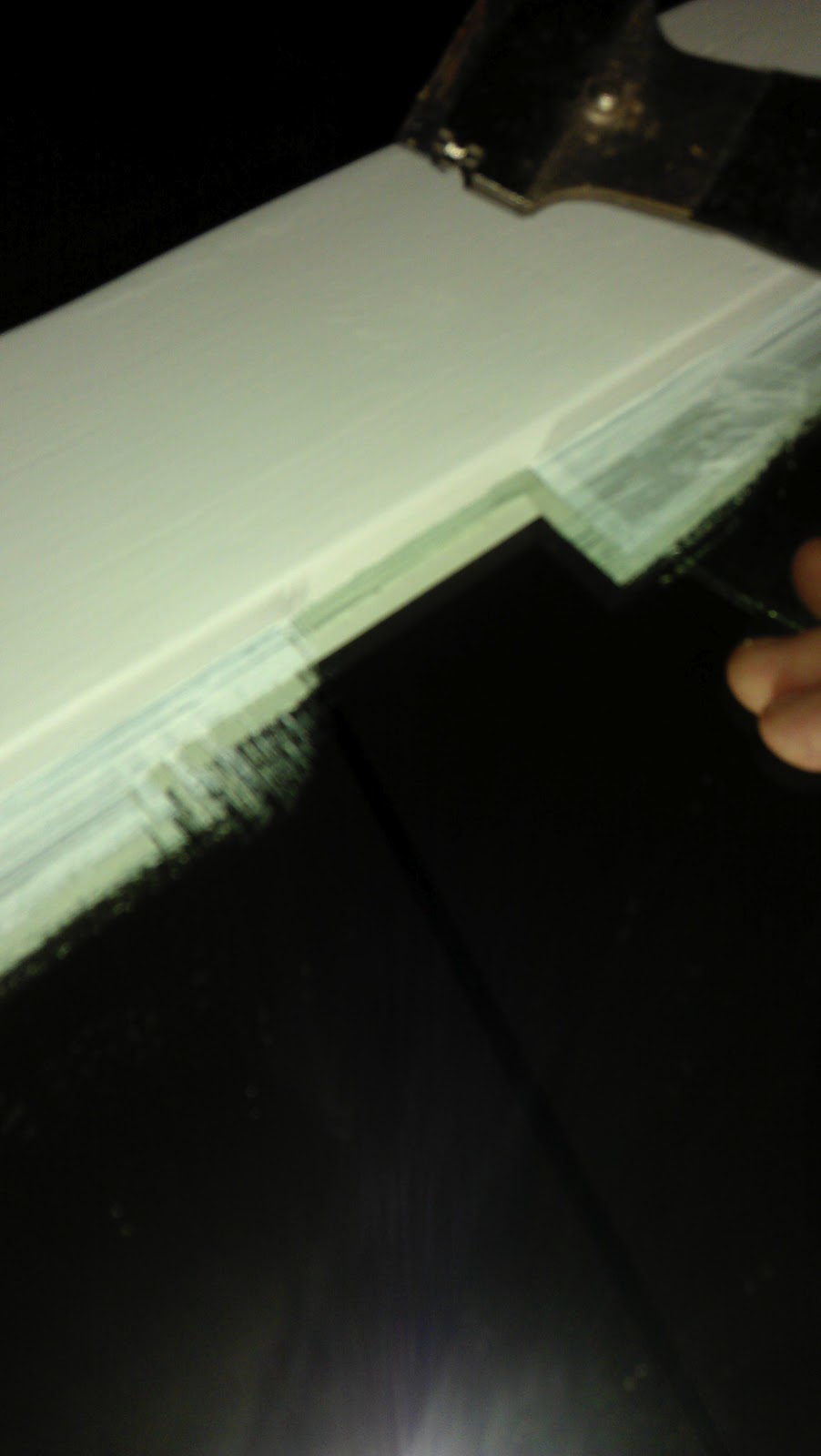

get your paint on making sure to cover all the edges up to the glass.  after the paint dries, use a standard razor and skim the paint off the mirror.  Win.





Now screw or nail any backing to it.  I didn't have a good piece of wood to cover it all so I modified an old piece of wood I found on the side of the road and cut little pieces out and attached them at an angle.  It worked fine.


So, did this hit the DIYandSIMPLIFY big three?  Let's see...

Cool? Heck of a lot cooler than an exposed mirror.

Cheap? Considering mine was free, it can be. Figure about $25 on average.

Easy?  Not the easiest - but not the hardest.  Depends on your available tools.

So, I'd say 2 outta 3.  As Chuck would say - "That's not turrible."  Anyways, it's done - let's make it official and give it the stamp
